Double side grinding and polishing machine

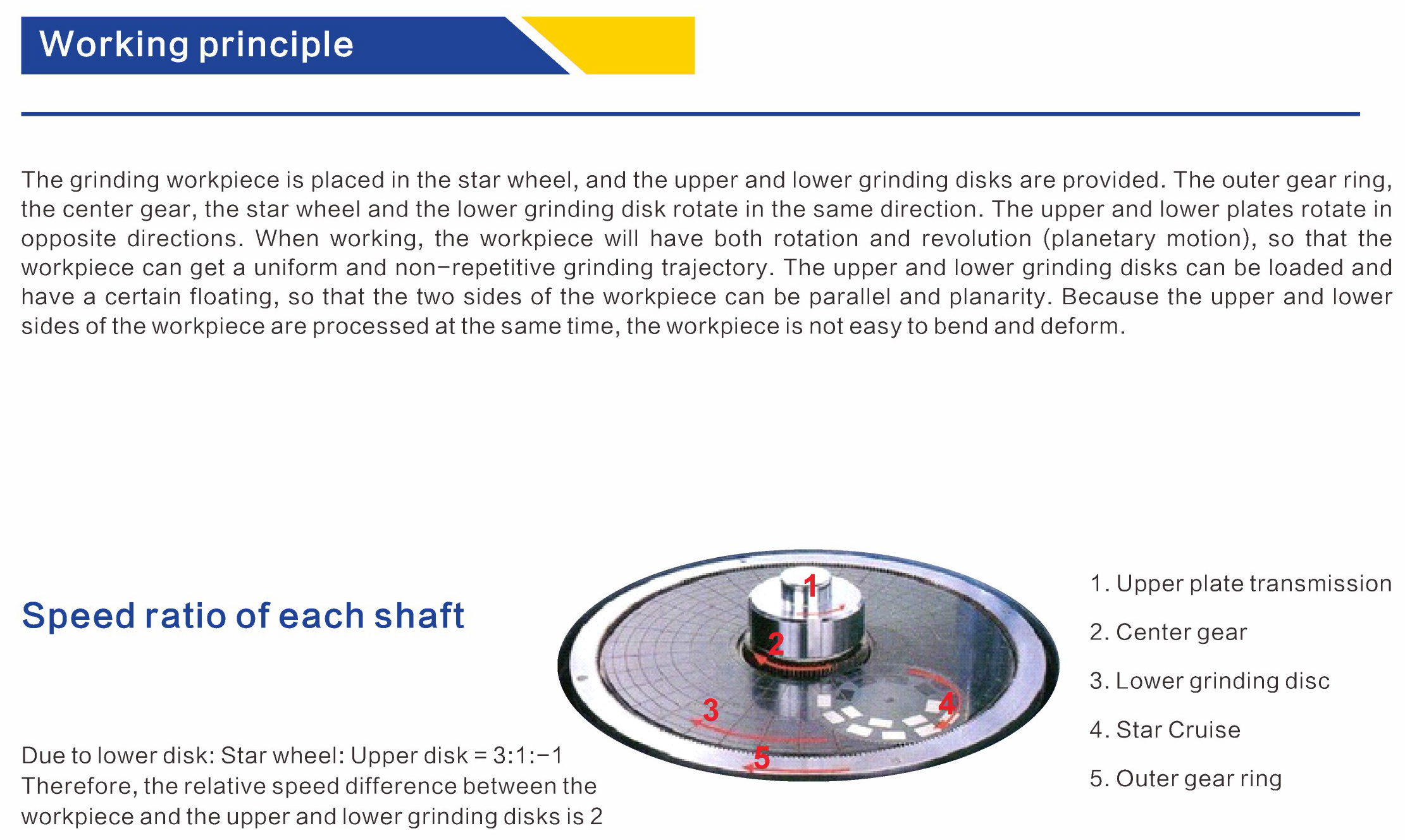

Place the grinded workpiece in the star wheel, and there are grinding discs at the top and bottom. The outer gear ring, central gear, planetary gear and lower grinding plate rotate in the same direction. The upper and lower discs rotate in opposite directions. When working, the workpiece will have both rotation and revolution (planetary motion), so that the workpiece can get a uniform and non repeated grinding track. The upper and lower grinding discs can be loaded and have a fixed floating, so that the parallelism and flatness of both sides of the workpiece can be improved. Since the upper and lower sides of the workpiece are processed at the same time, the workpiece is not easy to bend and deform.
Product Details


Related Products
Obtain your grinding equipment solution from reliable suppliers
Sainko has a professional equipment R&D team, abrasive material R&D team and process R&D team that constantly innovate and improve to provide customers with advanced equipment, advanced grinding and polishing materials and advanced processing solutions. Sainko tenet: let customers make the best products at the lowest cost.
Get A Free Quote
The main products of Sainko include single side abrasive polishers, double side abrasive polishers, jet polishers, resin copper discs, resin iron discs, abrasive pads, polishing pads, abrasive fluids, polishing fluids, fine grinding wheels, elastic abrasives for jet polishing, granulated diamond abrasives, etc.
